Questions

https://sli.do use code: #geecon

How do you picture Philips?

Probably this?

Not this

Philips is a health technology company improving people's health and well-being through meaningful innovation

Our purpose is to improve people’s health and well-being. We aim to improve 2.5 billion lives per year by 2030

Software in Philips

• 8000+ software professionals

• Global organisation

• Regulated medical software

• 100s millions lines of code

Adopting InnerSource

• Collaborate at Scale

• Build on top of GitHub (SaaS)

Improve DevX

• How do we enable CI/CD?

• How do we bootstrap?

• How do we share assets?

• How do we help with compliance?

Enable CI/CD

with GitHub Actions

on: [push]
jobs:
  check-bats-version:
    runs-on: [ubuntu-latest]
    container: node:16
    steps:
      - uses: actions/checkout@v3
      - run: npx bats -v

But how can we connect

to our network?

hosted runners

self-hosted runners

Why self-hosted?

How to bring same DevX to self-hosted runners?

Manual?

Event based

Scale based on workflow jobs

Serverless

low cost / low maintenance control plane

Treat as Cattle

Secure and no fire fighting

Networking

Bring your own connection

Event based / serverless / cattle / byon

Scalable self-hosted

Serverless contol plane receiving events from GitHub and scale new self-hosted runners using AWS EC2 Spot Instances

Terraform module with out of the box working configuration which can be tailored to for specific use-cases. AWS Lambda's build in TypeScript.

Scale up

• GitHub sends event App webhook
• AWS API gateway to get events
• AWS Lambda verifies event
• AWS SQS for decoupling / delay
• AWS Lambda to create EC2 runner
• GitHub App for API access

Scale Down

• No event
• Self terminating ephemeral runners
• Event bridge trigger to trigger regular scale down checks

DEMO

• Create cloud resources
• Configure webhook
• Run jobs on Linux / Windows

Open Source

ARM | Windows | GHES | Security

500+ Pull requests

Recommended by GitHub

Running at Scale

in Philips

Running at Scale

in Philips

4K+ developers

8K+ repositories

20K+ obs / day

Deployment

• Deploy runners with the runners
• Terragrunt to keep our Terraform dry
• Connect to Philips with AWS Direct Connect
• Work together with security to change firewall rules

Deployment - Terragrunt

Deployment - OIDC

Can we avoid using keys?

• Define OIDC provider for GitHub in AWS
• Create role with trust based on claim
• Define policies for role

Deployment

Trust

{
    "Sid": "",
    "Effect": "Allow",
    "Principal": {
        "Federated": "arn:aws:iam::<id>:oidc-provider/token.actions.githubusercontent.com"
    },
    "Action": "sts:AssumeRoleWithWebIdentity",
    "Condition": {
        "StringLike": {
            "token.actions.githubusercontent.com:sub": "<claim>"
        }
    }
}

Action

jobs:
  permissions:
    id-token: write

  deploy:
    steps:
      - uses: aws-actions/configure-aws-credentials@v2
        with:
          role-to-assume: ${{ inputs.aws_role_to_assume }}
          aws-region: ${{ inputs.aws_region }}

Lessons learned

Speed

• Caching GitHub runner binary
• Pre-build AMI
• Utilize Insance store

CI DOS Attack

We don't own it - It just work - We dont care

Limits

Mission critical

We are back

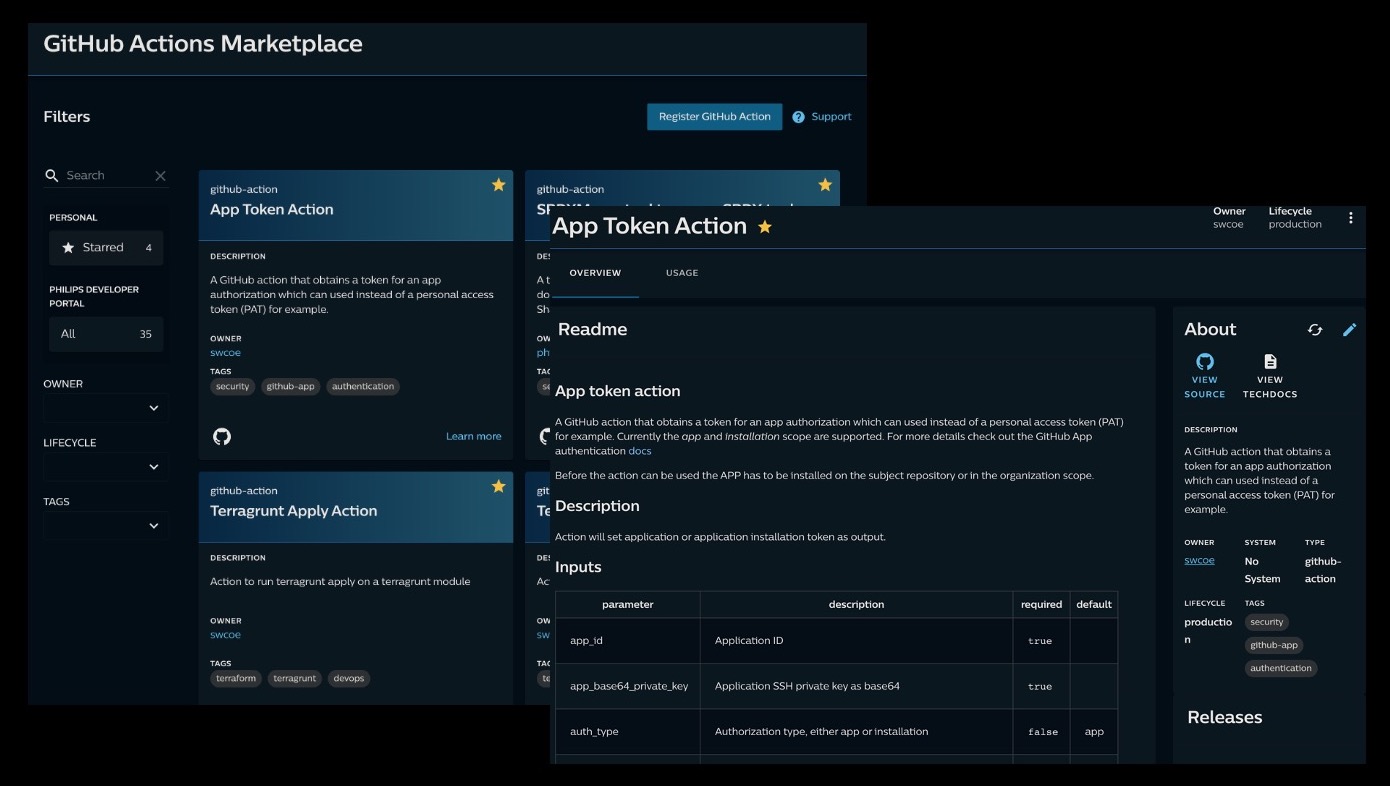

Developer Portal

Build an ecosystem, not a wilderness

• Software Catalogus
• Bootstrap / Scaffolding
• TechDocs
• Plugins

Software Catalogus

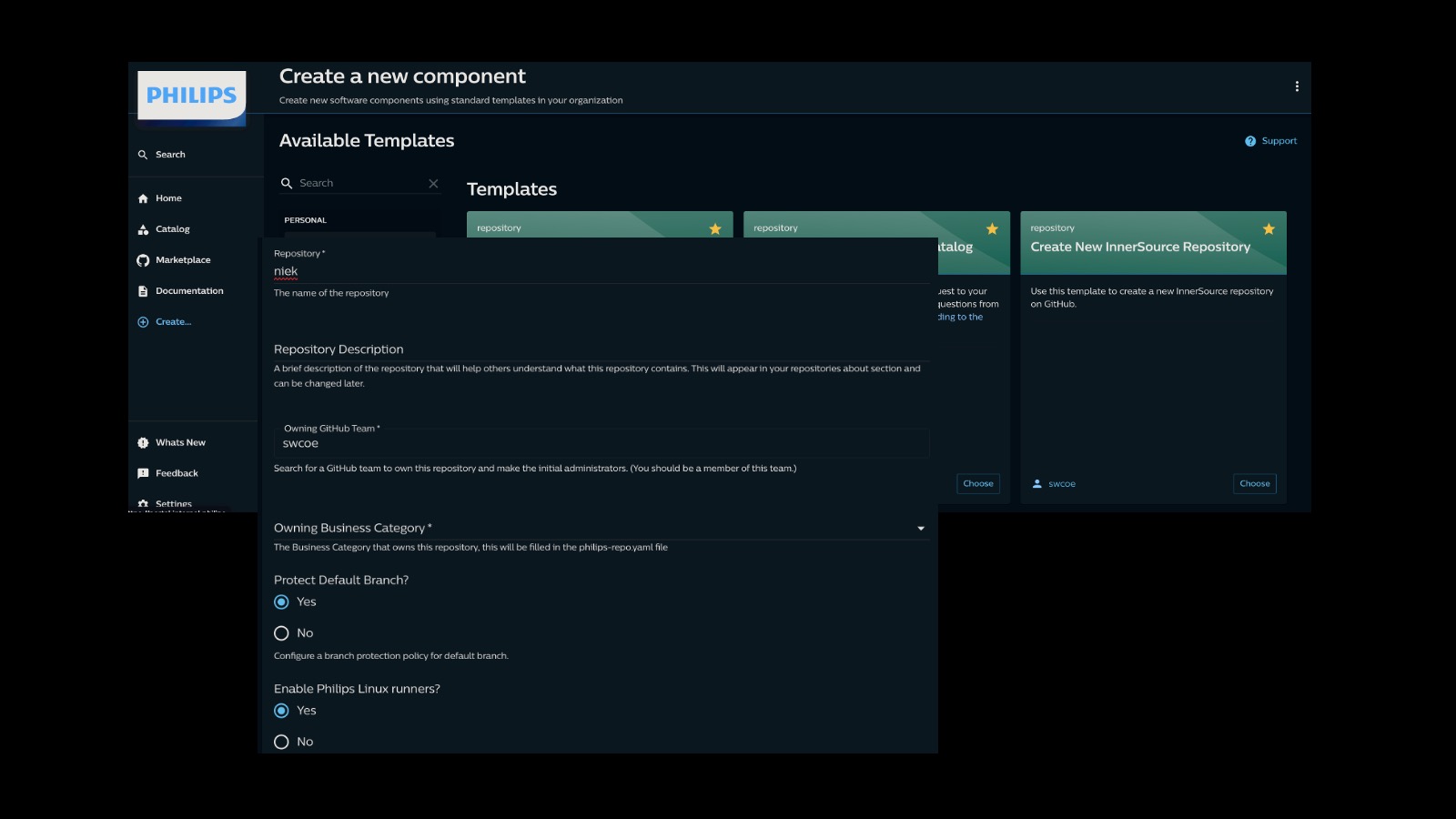

Scaffolding

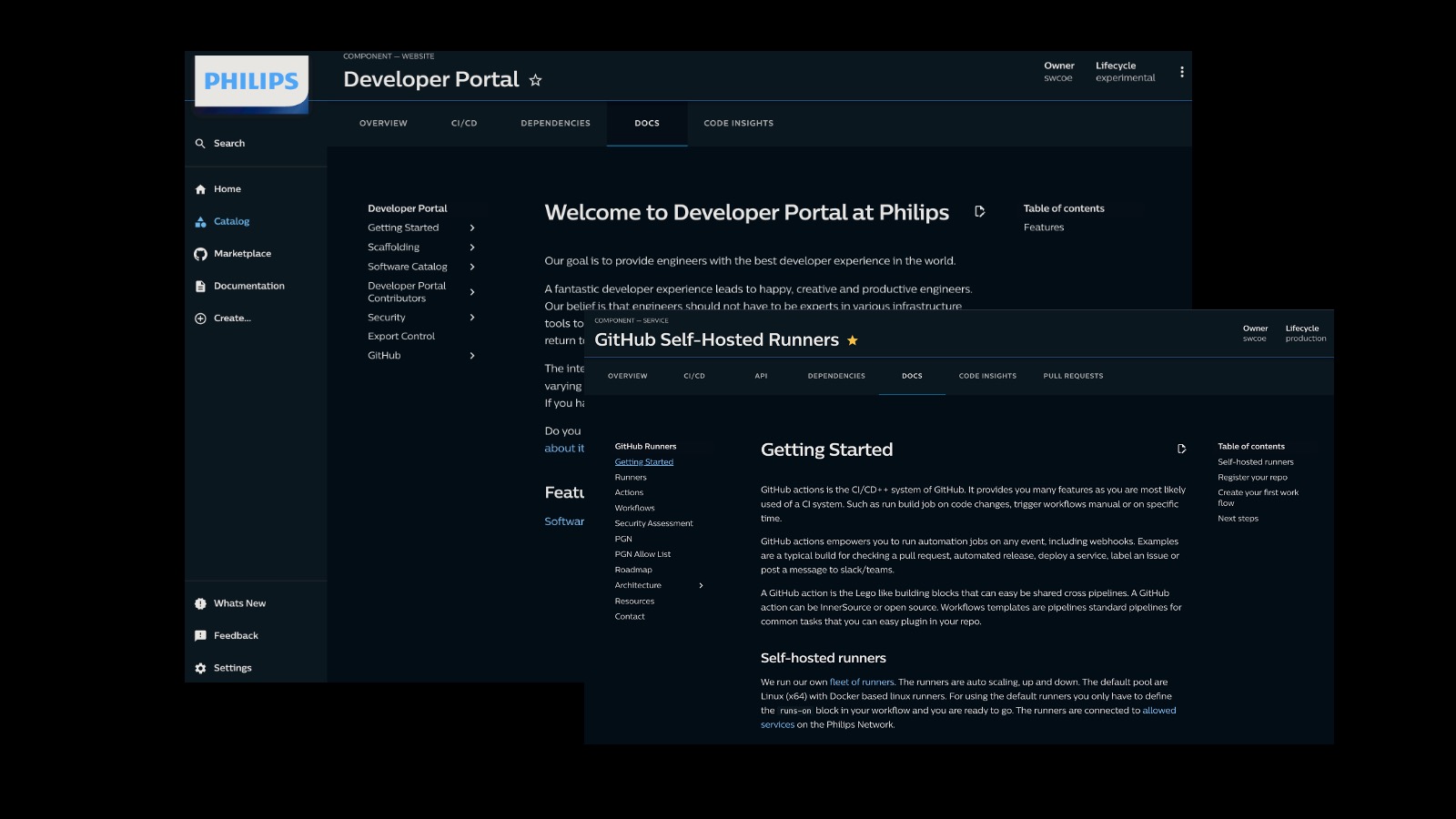

TechDocs

not 100% serverless

• ALB to enforce SSO login
• Fargate to serve Backstage
• OpenSearch to speed up searches
• S3 to serve TechDocs

Compliance

• Assist to do it right - scaffolding
• Avoid shadow IT - e.g. runners
• Continuous compliance - rule based
• Guide - welcome issue new members

Welcome new members

# Resources

resource "website" "github_runners" {
  url = "github.com/philips-labs/terraform-aws-github-runner"
}

resource "website" "github_oidc" {
  url = "github.com/philips-labs/terraform-aws-github-oidc"
}

resource "website" "slides" {
  url = "https://npalm.github.io/2023-04-20-geecon-devx/"
}

resource "contact" "niek" {
  github   = "@npalm"
  linkedin = "in/niekpalm/"
  twitter  = "@niekos77"
}

Questions

https://sli.do use code: #geecon

Thank You
